SuperPozz® is designed to meet the need for an ultrafine or superfine fly ash to formulate high performance concretes, particularly where durability is a key consideration or to meet construction challenges brought about by architectural creativity. One of the key attributes of SuperPozz® is the significant improvement in long-term concrete performance with the resulting reduction in maintenance costs.
Applications for SuperPozz® include:
- Self-compacting or self-placing concretes
- High performance readymixed and precast concrete
- Wet sprayed concrete
- Tunnelling concretes
- Proprietary pre-bagged repair mixes, precision grouts and flowable screeds
- Marine environment concretes where durability is critical
- Filler material in the manufacture of extruded plastics and rubber compounds
A highly reactive aluminosilicate pozzolan. As a constituent of a concrete mix, the product’s pozzolanic activity increases strength and durability. Its unique particle size distribution and spherical shape make it the preferred material where improved workability and/or water reduction is required.
Typical Characteristics
Physical

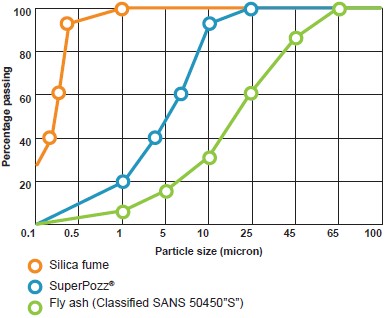

The mean particle diameter of SuperPozz® typically ranges between 3,9 and 5,0 microns, with over 90% of the material having a particle diameter of less than 11 microns. The bi-modal distribution of SuperPozz® effectively fills the void spaces between the fine aggregates and the cementitious component, creating an ideal ‘fine filler’ effect. This feature is particularly beneficial in high consistence and self-compacting concretes.
Chemical
SuperPozz® contains the same oxides as Portland cement, being made up of the same basic components but in different proportions and mineralogy. Portland cement is rich in lime (CaO) while SuperPozz® has a lower lime content. SuperPozz® can be used in conjunction with other cement extenders in concrete mixes. Technical evaluations have shown that concrete performance is further enhanced by using SuperPozz® in ternary blend combinations with either other grades of fly ash or ground-granulated blast furnace slag (GGBS).
Hydration reaction
Cement + H2 0 = Calcium silicate hydrate (CSH) + Ca(OH)2 Ca(OH)2 + SuperPozz® = CSH (additional, durable cement gel)
Technical Support
Ash Resources provides a technical advisory service for on site assistance and advice on mix design, evaluation trials and handling of their products. Technical data and guidance can be provided for all products used in concrete and mortars.
| Typical property characteristics | |
| Relative density | 2,0 – 2,4 |
| Theoretical surface area (cm2/g) | 13 000 |
| pH in water | 11 – 12 |
| Moisture content % (At point of dispatch) | < 0,5 |
| Colour Light grey | |
| LOI % (Loss on Ignition) | < 1,5 |
| Carbon content (%) | < 1,0 |
Typical Performance Properties
Water Reduction
Values obtained for concrete with equal binder content (400 kg/m3 , equal HRWR dosage and constant workability).
Improved workability
Values obtained for concrete with equal binder content (400 kg/m3). Equal w/c ratio and constant superplasticiser dosage.
| Control (CEM I) | SuperPozz (10%) | |
| CEM I | 400 | 360 | SuperPozz® | – | 40 | Water content | 163 litres | 141 litres | Water reduction | 0 | 22 litres | w/b ratio | 0,41 | 0,35 | Slump (mm) initial | 125mm | 125mm |
| Compressive strength (MPa) | ||
| 24 hours | 15,5 | 20,5 |
| 7 days | 52,0 | 58,5 |
| 28 days | 70,5 | 82,0 |
| 90 days | 74,0 | 91,0 |
Workability
Though never specified, workability is one of the most critical characteristics for fresh concrete. Workability refers to the ease of handling, placing and finishing of the fresh concrete. Approximately 30 litres of water are theoretically required to hydrate 100kg of cement. A normal concrete mix will generally need up to twice this amount of water, the additional water being required to facilitate handling and placing. This “water of convenience” not only increases the water/cement ratio, requiring more cementitious binder to achieve the design strength, but also increases the possibility of segregation.
SuperPozz® addition actively reduces the water demand of a concrete mix, producing higher strengths and superior cohesion at higher workability levels, without the requirement for additional water.
Packaging
SuperPozz® is available in Bulk (pressurised bulk powder tanker by road), 1,25 ton FIBC’s, jumbo bags with plastic inner liner, and 25kg plastic lined, repulpable paper sacks – all packaging can be arranged in consultation with Ash Resources. Sample product can be obtained from Ash Resources and will be provided in 20kg buckets
Applications
Concretes containing SuperPozz® can be used in virtually any application where Portland Cement concretes are used. With its unique properties, it is particularly suited for high performance applications including the manufacture of proprietary pre-bagged repairs, precision grouts and flowable screeds. In marine environment concretes, and in any other application where durability is a fundamental requirement, SuperPozz® is the preferred addition to the mix.
Recommended uses of SuperPozz® concretes:
Excellent
- High performance readymix and precast concrete
- Marine environment concretes
- Pumped concrete
- Wet-sprayed concrete
- Proprietary pre-bagged formulations
- Self-Compacting Concrete (SCC)
Good
- Mass concrete sections
- Concrete tiles
- Industrial floors
- Fibre cement products
Compatibility
With other cementitious materials and admixtures, SuperPozz® is suitable for use with all types of Portland cement and cement replacement materials, e.g. GGBS, fly ash, silica fume and metakaolin. SuperPozz® is compatible with a wide range of admixtures working particularly well in high performance concretes when used in conjunction with superplasticiers.
Mix design
When using SuperPozz® in concrete, normal mix design procedures and guidelines can be used taking into account the unique benefits and properties contributed by its addition.
Features
- High-performance concrete with a low w/c ratio, high early and later-age strength and superior durability is made possible with the inclusion of SuperPozz® in the mix
- SuperPozz® can be used in the production of Self-Compacting Concrete (SCC)
- Low w/c ratio SuperPozz® concrete exhibits decreased permeability, reduced Sulphate Attack and reduced Alkali Silica Reactivity (ASR)
- The lubricating action of SuperPozz® reduces water content and drying shrinkage

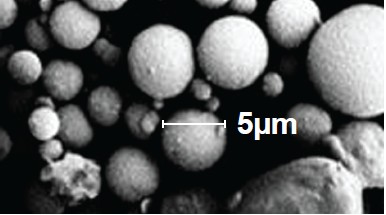

SuperPozz® micrograph
Fresh Concrete Properties
Performance
SuperPozz® imparts physical as well as chemical benefits when used in concrete. In fresh or plastic concrete, the spherical shape and ultrafine particle size of SuperPozz® significantly improves the rheology of the mix. Consequently:
- The water content of the concrete can be reduced. As a guide, the mix water should be reduced by a minimum of 10%
- The workability of the concrete is improved at the same water content without bleeding or segregation of the mix normally associated with highly workable concrete
- Pumpability is greatly increased by the use of SuperPozz® and it is often possible to pump mixes without altering the fine aggregate content. In more conventional concretes, the coarse aggregate content can be increased e.g: at a SuperPozz® addition of 15%, an increase in stone content of ±5% can be achieved SuperPozz® addition can lead to more cost-effective dosage levels of dispersing admixtures such as superplasticisers and new generation PCE’s
Hardened concrete properties
Strength development

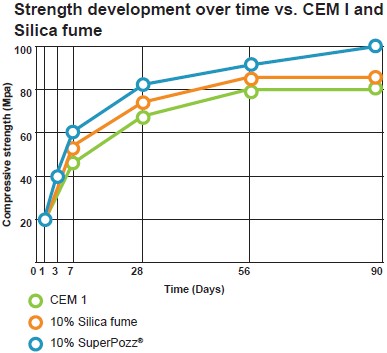

As can be seen from the following graph, the mix containing SuperPozz® has comparable strength to silica fume concrete at all ages. It also illustrates the continued strength gain up to 90 days due to the pozzolanic properties of SuperPozz®.
The typical strength development of concrete containing SuperPozz® is illustrated below:

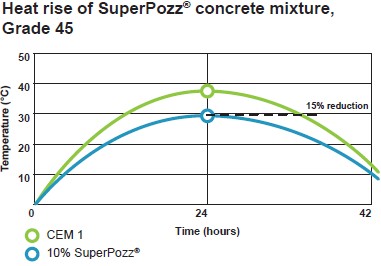

Heat of hydration
By reducing the water content with a subsequent reduction in the cement content, SuperPozz® is very effective in the control of the heat of hydration. At SuperPozz® addition levels of between 10 – 15%, reduction in the maximum temperature generated can be in the order of 15%.
Storage
SuperPozz®, when stored correctly, has an indefinite shelf life. Like cement, SuperPozz® must be protected from contamination and moisture. The product can be stored in bulk in a clean, dry storage silo. Advice on aeration, which may be required due to the product’s extreme fineness and rounded shape, is available from Ash Resources on request
Benefits

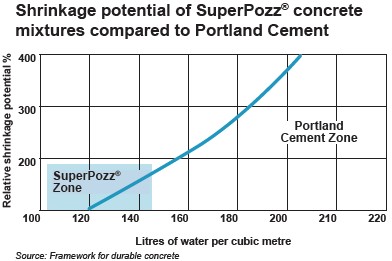

Relative shrinkage potential
The largest contributor to shrinkage is water content. SuperPozz® concrete demands less water, potentially reducing shrinkage by up to 75%.

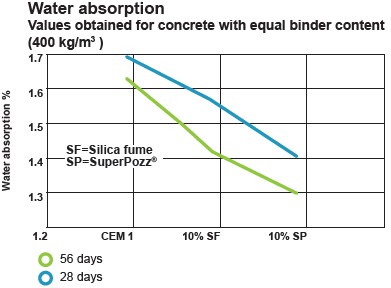

Water absorption
The pozzolanic reaction of SuperPozz® in concrete produces additional calcium silicate hydrate gel which fills pore spaces. This results in a dense paste matrix. The decrease in water absorption from 28 to 56 days reflects an increase in density as a result of the refinement of the pore structure.
Durability
SuperPozz® protects concrete in a number of ways. Hardened SuperPozz® concrete is less permeable because SuperPozz®, unlike other high reactivity pozzolans, reduces the amount of water needed to produce a given slump. Coupled with its high pozzolanic reactivity, creating more durable calcium silicate hydrate (CSH) gel, SuperPozz® reduces the rate of ingress of harmful chlorides and other corrosive salts.
Chloride ingress
The use of SuperPozz® as a partial replacement of cement improves impermeability, significantly reducing both the diffusion and penetration of chlorides into concrete. In addition, research has shown that chemical binding of chlorides is improved by aluminosilicate pozzolans. The alumina content of SuperPozz® exceeds 30%.
Sulphate resistance
SuperPozz® addition is an ideal means of providing Sulphate resistance. SuperPozz® decreases the available sulphate, preventing the formation of ettringite, which could otherwise form expansive compounds.
Alkali-silica reaction
Where aggregates are classified as alkali-reactive, SuperPozz® has the ability to react with alkali hydroxides in Portland cement paste, making them unavailable for reaction with these aggregates, and combating this expansive reaction.
CO2
Reduces the carbon footprint of concrete.
Health and Safety
No known significant health risks are associated with SuperPozz® but high concentrations of dust may cause irritation. It is recommended that suitable protective clothing, gloves and eye/face protection is worn. In case of contact with eyes, rinse immediately with plenty of clean water and seek medical advice. For further details please consult the Material Safety Data Sheet (MSDS) for SuperPozz®.
